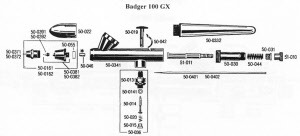

Badger 1OO GX Assembly Drawing
50-0161 Badger needlecap + head + tip FINE for airbrush 100 / 150
50-0162 Badger needlecap + head + tip MEDIUM for airbrush 100 / 150
50-019 Badger lever for airbrush 100 / 150 / 155 / 200SG / 200G / 200 / 360
50-030 Badger springregulator airbrush 100 / 150 / 155 / 360
50-031 Badger springtensioner for airbrush 100 / 150 / 155 / 360
50-036 Badger complete airvalve for airbrush 100 / 150 / 200SG / 200G / 200 / 360
50-0371 Badger needlecap FINE for airbrush 100 / 150 / 200SG / 200G / 200
50-0372 Badger needlecap MEDIUM for airbrush 100 / 150 / 200SG / 200G / 200
50-0381 Badger head + tip FINE for airbrush 100 / 150 / 200SG / 200G / 200
50-0382 Badger head + tip MEDIUM for airbrush 100 / 150 / 200SG / 200G / 200
50-0391 Badger nozzle FINE for airbrush 100 / 150 / 200SG / 200G / 200
50-0392 Badger nozzle MEDIUM for airbrush 100 / 150 / 200SG / 200G / 200
50-0401 Badger needle FINE for airbrush 100 / 150
50-0402 Badger needle MEDIUM for airbrush 100 / 150
50-042 Badger leverguide airbrush 100 / 150 / 155 / 360
50-044 Badger needlespring for airbrush 100 / 150 / 155 / 360
50-046 Badger O-ring for needle airbrush 100 / 150 / 155 / 200SG / 200G / 200 / 360
50-055 Badger O-ring for head airbrush 100 / 150 / 200SG / 200G / 200
51-010 Badger needletensioner for airbrush 100 / 150 / 155 / 360
51-011 Badger needleguide airbrush 100 / 150
104083 H&S Plug for Quick coupling NW 2.7 + 5/32 inch ID Badger
